| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.000009 to 18 |
|---|
| Frequency Min (GHz): | 9E-06 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2 dB Max @ -10 dBm Input Power |
|---|
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm Input Power |
|---|
| Power Handling: | 20 W CW Max
1 kW Peak Max @ 1 µs PW, 1% Duty Cycle
100 W Peak @ 10 µs PW, 10% Duty Cycle |
|---|
| RF Leakage (dBm): | 15 Max @ 20 W CW
15.5 Max @ 1 kW, 1 µs PW, 1% duty cycle, 2.4 GHz |
|---|
| Recovery Time: | 500 ns Max @ 1 kW Peak Power |
|---|
| P1dB Limiting Threshold (dBm): | 5 Min |
|---|
| Impedance: | 50 Ohm |
|---|

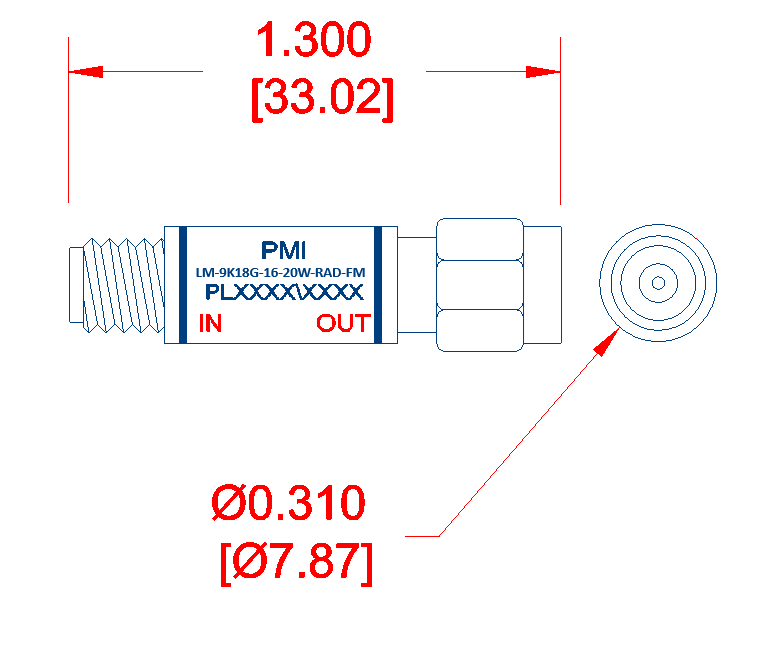

| Connectors In/Out: | 2.92mm Female / Male |
|---|
| Finish: | Albaloy Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C to +85 °C |
|---|
| Non-Operating Temperature: | -62 °C to +95 °C |
|---|
| Humidity: | 100% |
|---|
| Vibration: | 0.1 Inchpp or ± 10G, 5~500 Hz
(Figure 2, Sheet 1 of 3, Curve IV) |
|---|
| Shock: | 20G, 11 ± 1 ms |
|---|
| Altitude: | 70, 000 ft |
|---|
