LM-8G18G-7-33DBM-12V Active

Limiter

LM-8G18G-7-33DBM-12V
Product Feature

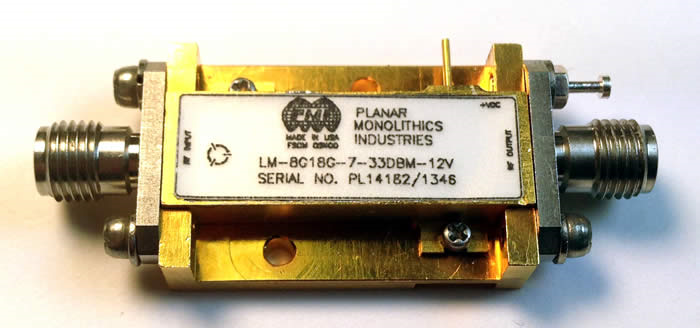

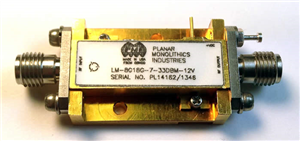

Quantic PMI Model LM-8G18G-7-33DBM-12V is an active limiter that operates over a frequency range of 8.0 to 18.0GHz with a maximum input power of +33dBm CW and a maximum leakage power of +7.1dBm. The VSWR is 2.0:1 and the operating voltage is +12VDC with a maximum current draw of 100mA. The unit is supplied with removable SMA(F) connectors in our standard PE2 housing.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8 to 18
Frequency Min (GHz): 8
Frequency Max (GHz): 18
Insertion Loss (dB): 2 dB Max
Input/Output VSWR: 2.0:1 Max
Maximum Input Power: +33 dBm CW
Input Power: +33 dBm CW Max
RF Leakage (dBm): +7.1 dB Max
DC Supply: +12 to +15VDC @ 100 mA Max - Measured 64 mA
Connectors In/Out: SMA (F)
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -55ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
