LM-8G12G-1R5-SFM Preliminary

Product Feature

PMI Model No. LM-8G12G-1R5-SFM is a coaxial limiter with an operating range of 8.0 to 12.0 GHz. This model has a maximum insertion loss of 1.5 dB with a VSWR of 1.8:1 maximum. This compact unit measures 0.90" x 0.38" square and is outfitted with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8 to 12 GHz
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Insertion Loss (dB): 1.5 max.
Input/Output VSWR: 1.8:1 max.
Input Power: Average: 1 W max.
Peak Power: 100 W max.
Leakage Power: 50 mW max. @ Pulse Width of 1 us
Repetition Frequency: 1 KHz
Power: 100 W max.
Spike Leakage: 0.2 erg max. @ Pulse Width of 1 us
Repetition Frequency: 1 KHz
Power: 100 W
RF Leakage (dBm): 17 Max @ Pulse Width of 1 us
Repetition Frequency: 1 KHz
Power: 100 W max.
Recovery Time: 100 ns max.
P1dB Limiting Threshold (dBm): 0 dBm min.
Connectors In/Out: Input: SMA (F)
Output: SMA (M)

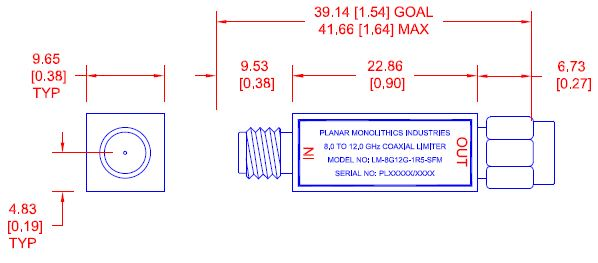

Size: 0.90" x 0.38" x 0.38" max. (Excluding Connectors)
Finish: Painted Blue
Weight: 20 g max.
Allowable Input Power: Average: 1 W max.
Peak Power: 100 W max.
Environmental Ratings:
Operating Temperature: -54°C to +71°C
Non-Operating Temperature: -62°C to +85°C
Humidity: 95% (71°C) RH max.
Vibration: MIL-E-5400R Fig. 2 Curve2 and Curve3
Shock: MIL-E-5400R 3.2.24.6.1
Altitude: 9, 144 m (Operating), 12, 192 m (Storage)
