Low Leakage Limiter

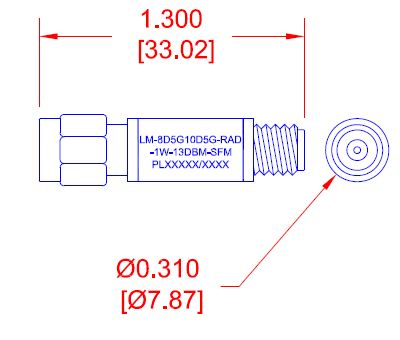

Quantic PMI Model LM-8D5G10D5G-RAD-1W-13DBM-SFM is a low leakage limiter operating over the 8.5 to 10.5 GHz frequency range. This model offers excellent temperature stability with very low loss. Package size is 1.3" x Ø0.31" with 2.92mm male / female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 8.5 to 10.5 |
|---|
| Frequency Min (GHz): | 8.5 |
|---|
| Frequency Max (GHz): | 10.5 |
|---|
| Insertion Loss (dB): | 1.6 dB Max |
|---|
| Input/Output VSWR: | 1.7:1 dB Max |
|---|
| Input Power: | 30 dBm Max (1 W CW) |
|---|
| RF Leakage (dBm): | +13 dB Max CW |
|---|
| P1dB Limiting Threshold (dBm): | +10 Typ |
|---|
| Connectors In/Out: | 2.92mm (M) OUT/ (F) IN
100% Compatible with SMA |
|---|
| Finish: | Nickle Plated |
|---|
| Weight: | 2 oz Max |
|---|
| Test Data Included: | Temperature and humidity recorded (25 °C at 40% Humidity) |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | 0 °C to +50 °C |
|---|
| Non-Operating Temperature: | -30 °C to +60 °C |
|---|
| Humidity: | 95% Max- NOT CONDENSATION |
|---|
| Vibration: | 2 to 7 Hz total amplitude 5.0mm / 7 to 50Hz: Speed of acceleration 4.9m/s^2 |
|---|
| Shock: | 1) Operating: 68m^sA2, 10ms 2) Non-Destructive: 98m/s^2, 10ms |
|---|
