LM-818-C3-1 Active

High Power Limiter

Product Feature

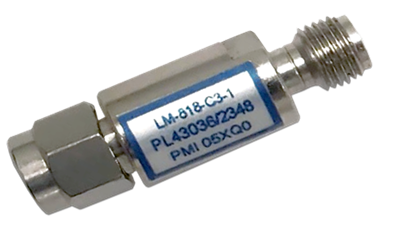

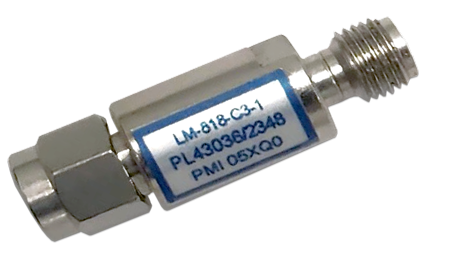

Quantic PMI Model LM-818-C3-1 is a high-power limiter that works from 8 to 18 GHz that has a maximum insertion loss of 1.9 dB with power handling of 3 W average, 1 kW Peak maximum and a VSWR of 2.0:1. Package size is 1.314" x Ø0.31" with 2.92mm male / female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8 to 18
Frequency Min (GHz): 8
Frequency Max (GHz): 18
Insertion Loss (dB): 1.7 dB Typ, 1.9 dB Max
Input/Output VSWR: 2.0:1 Max
Peak Power: 1 kW Max
Average Power: 3 W Max
Input Power: 3 W Max
Leakage Power: 80 mW Typ
RF Leakage (dBm): 19 dBm Typ
Recovery Time: 1 µs Typ
Connectors In/Out: 2.92mm Male / Female
Size: 1.314" (Length) x 0.375" (Diameter)
Weight: <1 oz. Typ
Environmental Ratings:
Operating Temperature: -55 °C to +125 °C
Derate Power Handling to Zero @ +125 °C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
