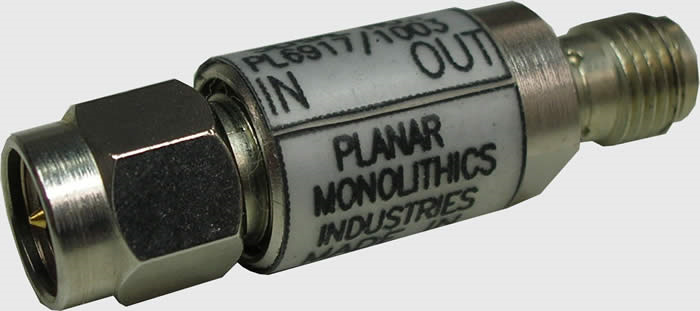

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.08 to 0.6 |
|---|
| Frequency Min (GHz): | 0.08 |
|---|
| Frequency Max (GHz): | 0.6 |
|---|
| Insertion Loss (dB): | 1.2 Max |
|---|
| Input/Output VSWR: | 1.5:1 Max |
|---|
| Peak Power: | 5 Watts CW @ +25ºC |
|---|
| Input Power: | 5 Watts CW @ +25ºC (Peak) |
|---|
| RF Leakage (dBm): | +10 Max |
|---|
| Recovery Time: | 1 us max |
|---|
| Connectors In/Out: | 2.92mm (M) Input and 2.92mm(F) Output |
|---|
| Size: | 1.314 (L) x 0.375 (Diameter) |
|---|
| Finish: | ALBALOY PLATED |
|---|
| Weight: | 1.0 oz. Maximum |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55ºC to +125 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
