LM-7G8G-30W-SFF Preliminary

RF Limiter

LM-7G8G-30W-SFF
Product Feature

Quantic PMI Model LM-7G8G-30W-SFF is a RF limiter that operates over the 7 to 8 GHz frequency range. This limiter can handle 30 W CW input power and provide a maximum leakage of 15 dBm. Package size is 1.00" x 0.65" x 0.38" with field replaceable SMA (F) connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 7 to 8
Frequency Min (GHz): 7
Frequency Max (GHz): 8
Insertion Loss (dB): 1.5 dB Max @ -10 dBm Input Power
Input/Output VSWR: 1.8:1 dB Max
Input Power: 43 dBm Min (20 W Min / 30 W Max)
RF Leakage (dBm): 15
P1dB Limiting Threshold (dBm): 15 Typ
Impedance: 50 Ohm
Connectors In/Out: SMA Female

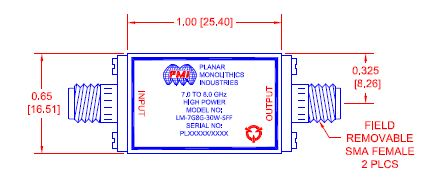

Size: 25.40 mm x 16.51 mm x 9.65 mm
1.00" x 0.65" x 0.38"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Vibration: 9.8 GRAMS 50 to 200 Hz SINE
Shock: -50G for 10 ms
