LM-7D8G18G-3W-SMF
Preliminary
Limiter
Quantic PMI Model LM-7D8G18G-3W-SMF is a high power limiter operating over the 7.8 to 18.0 GHz frequency range.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 7.8 to 18 |
|---|
| Frequency Min (GHz): | 7.8 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 2 dB Max |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| Peak Power: | 1000 W Max |
|---|
| Average Power: | 3 W Max |
|---|
| Input Power: | 50 mW CW Max |
|---|
| Leakage Power: | 80 mW Typ |
|---|
| RF Leakage (dBm): | 19 Typ |
|---|
| Recovery Time: | 1000 ns Typ |
|---|
| Connectors In/Out: | 2.92mm (MALE IN/ FEMALE OUT) 100% COMPATIBLE WITH SMA |
|---|

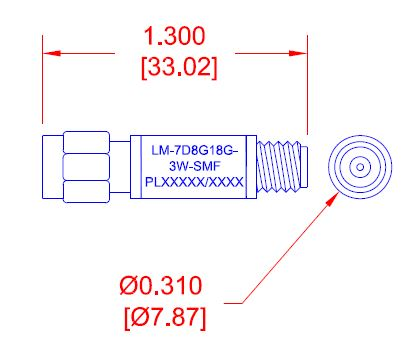

| Size: | (L) 1.30" x 00.31"
(L) 33.02 mm x 07.87 mm |
|---|
| Finish: | NICKEL PLATED |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C TO +95 °C |
|---|
| Non-Operating Temperature: | -40 °C TO +125 °C |
|---|
| Humidity: | 95% RH @ +45° C |
|---|
| Vibration: | 5mm p-p @ 2-5Hz / 1.5mm p-p @ 5-10Hz / 3mm p-p @10-25Hz XYZ axes |
|---|
| Shock: | 20G@ 11ms (NON-OPERATING) |
|---|
