LM-6G18G-15-10W-SFF-OPT812 Preliminary

Limiter

LM-6G18G-15-10W-SFF-OPT812
Product Feature

Quantic PMI Model LM-6G18G-15-10W-SFF-OPT812 is a high power limiter capable of withstanding an input power level of 10 Watts CW. The insertion loss is 1.5 dB typical, VSWR of 1.8:1 Typical. Leakage Power is +15dBm typical. This unit is packaged in a small 1.00 X 1.00 X 0.05 housing.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 8 to 12
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Insertion Loss (dB): 1.5 Typ @ 0 dBm
Input/Output VSWR: 1.9:1
Peak Power: 100 W
Input Power: 10 W CW
RF Leakage (dBm): +15 Typ
Connectors In/Out: SMA(F)

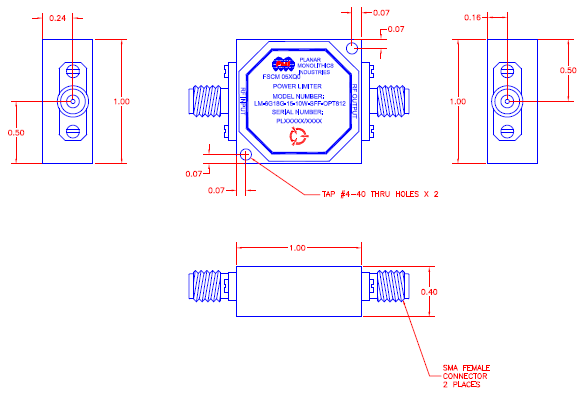

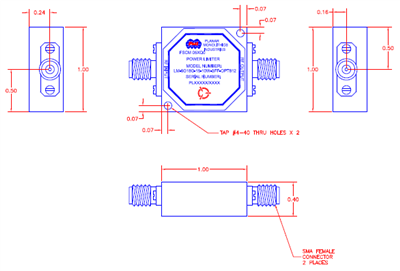

Size: 1.0" X 1.0" X 0.5"
Weight: 1.5 OUNCE TYPICAL
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
