LM-6G18G-15-10W-SFF-OPT1114
Preliminary
Limiter
Quantic PMI Model LM-6G18G-15-10W-SFF is a high power limiter that operates over the 11.0 to 14.0 GHz frequency range.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 11 to 14 |
|---|
| Frequency Min (GHz): | 11 |
|---|
| Frequency Max (GHz): | 14 |
|---|
| Input Power: | 20 Watts (43 dBm) |
|---|
| RF Leakage (dBm): | 18 Max |
|---|
| Pulse width: | 1 ms |
|---|
| Duty Cycle: | 0.2 |
|---|
| Connectors In/Out: | SMA (F) |
|---|

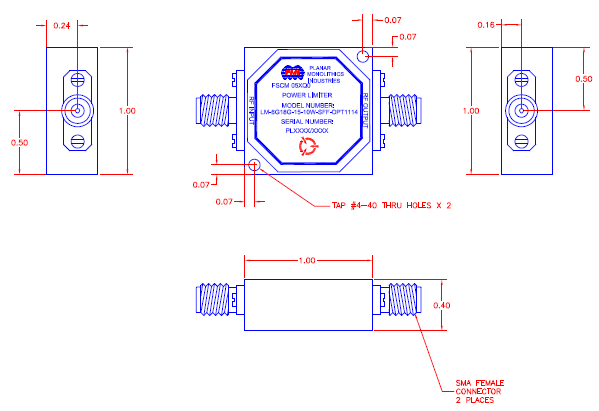

| Size: | 1.0" X 1.0" X 0.5" |
|---|
| Weight: | 1.5 oz. Typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
