LM-6D7G7D9G-30W-SMF Preliminary

Product Feature

PMI Model LM-6D7G7D9G-30W-SMF is a RF limiter that operates in the 6.7 to 7.9 GHz frequency range. This limiter can handle 30 watts CW input power and provides a maximum leakage of +18dBm. This model has a low insertion loss of 1.1 dB maximum and a recovery time of 10usec maximum. This limiters is supplied with SMA female connectors and the package measures 1.0" x 0.65" x 0.38" which is gold plated.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 6.7 to 7.9 GHz
Frequency Min (GHz): 6.7
Frequency Max (GHz): 7.9
Insertion Loss (dB): 1.1 Max
Input/Output VSWR: 1.5:1 max
Input Power: 30 W CW Max
RF Leakage (dBm): 18 Max @ Input Power of 30 W CW
Recovery Time: 10 µs Max
Impedance: 50 Ohms

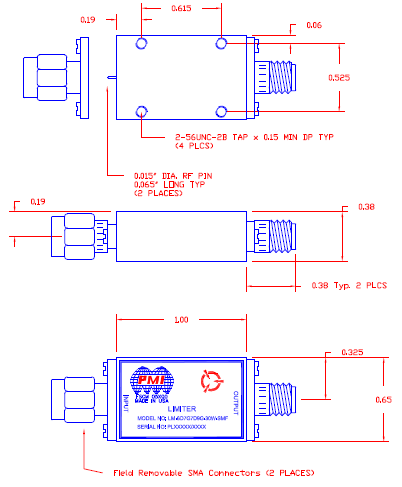

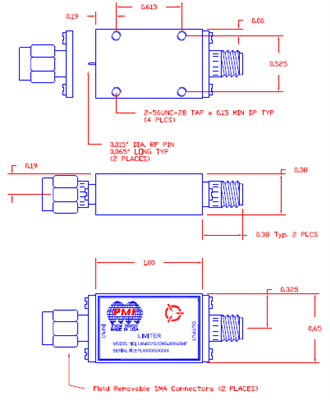

Size: 1.0" x 0.65" x 0.38"
Finish: Gold Plated
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Vibration: 8.25 G rms, 20-2000 Hz (Operating), 16.5 G rms, 20-2000 Hz (Non-Operating)
Shock: 20 G, 11 msec
Temperature Cycle: MIL-STD-202F, Method 107
