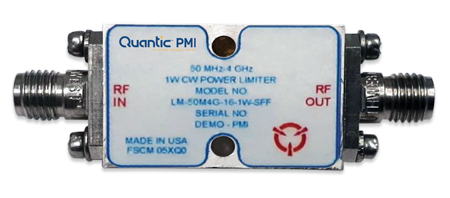

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 0.05 to 4.0 GHz (Usable to 11.0 GHz) |
|---|
| Frequency Min: | 0.05 GHz |
|---|
| Frequency Max: | 4.0 GHz (Usable to 11.0 GHz) |
|---|
| Insertion Loss: | 1.7 dB Max |
|---|
| Input/Output VSWR: | 1.80:1 Max |
|---|
| Power Handling: | 1 W (+30 dBm) CW Max (Usable to 4 W Max)
Peak Power 32 W Peak (+45 dBm),
Pulse 1 µs, Duty Cycle 0.1% |
|---|
| Input Power: | 1 W (+30 dBm) CW Max (Usable to 4 W Max)
Peak Power 32 W Peak (+45 dBm),
Pulse 1 µs, Duty Cycle 0.1% |
|---|
| Flat Leakage Power: | +22 dBm Typ |
|---|
| Recovery Time: | 50 ns Max |
|---|
| Connectors In/Out: | SMA (F) |
|---|
| Size: | 1.00" x 0.68" x 0.35" |
|---|
| Finish: | Painted Blue |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -55 °C to +125 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
