LM-500M8G-2-33DBM-12V-OPT2G4G Active

Product Feature
Additional Documents

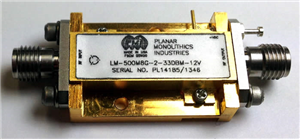

PMI Model No. LM-500M8G-2-33DBM-12V is an active limiter that operates over a frequency range of 2.0 TO 4.0 GHz with a maximum input power of +33dBm CW and an output leakage power of 0 dBm. The VSWR is 2.0:1 and the operating voltage is +12VDC with a typical current draw of 140mA. The unit is supplied with removable SMA(M/F) connectors in our standard PE2 housing.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2.0 to 4.0 GHz
Frequency Min (GHz): 2
Frequency Max (GHz): 4
Insertion Loss (dB): 2.0 max
Input/Output VSWR: 2.0:1 max
Maximum Input Power: +33 dBm CW
Input Power: +33 dBm CW max.
RF Leakage (dBm): +2.3 Max
DC Supply: +12VDC @ 180mA max., 140 mA typ
Connectors In/Out: SMA (M/F)
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
