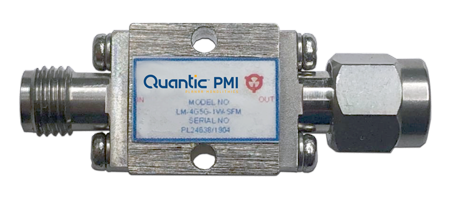

LM-4G5G-1W-SFM Active

Limiter

Product Feature

Quantic PMI Model LM-4G5G-1W-SFM is a limiter that operates over the frequency range of 4.0 to 5.0 GHz. It has a maximum insertion loss of 1 dB and a maximum VSWR of 1.5:1. This model is outfitted with a SMA female connector and a SMA male connector.

Product Specifications

General Parameters:
Status: Active
Frequency: 4.0 to 5.0 GHz
Frequency Min: 4.0 GHz
Frequency Max: 5.0 GHz
Insertion Loss: 1 dB Max
Input/Output VSWR: 1.5:1 Max
Input Power: 1 W Max
Connectors In/Out: SMA (F) / SMA (M)
CW RF Power: 1 W Max
Peak Power (1 us PW 0.1% DC): 1000 W Max
Leakage (CW) @ 1 Watt CW: 15 dBm Max
Environmental Ratings:
Operating Temperature: -45 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: 100% RH @ 35°C, 95% RH @ 40°C
Vibration: 25 g rms (15° 2 KHz)
Shock: 20 G for 11 msc
