LM-4G18G-100W-15DBM-SMF Active

High Power Limiter

Product Feature

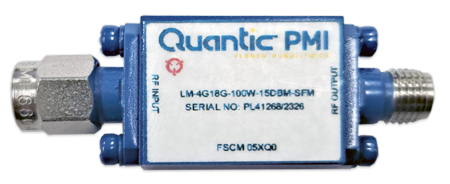

Quantic PMI Model LM-4G18G-100W-15DBM-SMF is a high power limiter that operates over the 4 to 18 GHz frequency range. This model can handle an input power of 100 W. Package size is 0.625" x 0.80" x 0.40" (excluding connectors) with removable SMA male/female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 4 to 18 GHz
Frequency Min (GHz): 4
Frequency Max (GHz): 18
Insertion Loss (dB): 2.5 Max @ -10 dBm (-54 & +25 °C),
2.6 Max @ +10 dBm (+55 °C)
Input/Output VSWR: 2.0:1 Max (Input)
2.2:1 Max (Output)
@ -10 dBm Input Power
Input Power: +50 dBm CW (100 W) Max
+60 dBm Peak (1 kW) 1% DC, 1 µs PW
RF Leakage (dBm): +15 Max
Recovery Time: 100 ns Max
Connectors In/Out: SMA Male/Female (Removable)
Size: 15.88mm x 20.32mm x 10.16mm (Excluding Connectors)
0.625" x 0.80" x 0.40" (Excluding Connectors)
Finish: Hermetically sealed, painted blue. Mounting surface free of paint.
Weight: 2.0 oz Max
Insertion Loss @ -10 dBm Input Power: 2.5 dB Max (-54°C and +25°C)
2.6 dB Max (+55°C)
VSWR @ -10 dBm Input Power: 2.0:1 Max (Input)
2.2:1 Max (Output)
Environmental Ratings:
Operating Temperature: -54 °C to +55 °C
Non-Operating Temperature: -57 °C to +85 °C
Humidity: 100% RH (WITH CONDENSATION)
Altitude: 43, 000 FT
