LM-400M2G-20-1W-SFF Active

Coaxial Limiter

Product Feature
Additional Documents

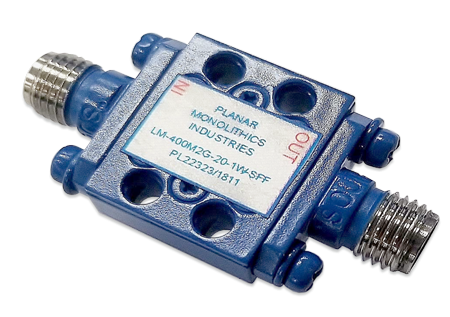

Quantic PMI Model LM-400M2G-20-1W-SFF is a coaxial limiter that operates over the 0.4 to 2 GHz frequency range. This model offers a maximum of 0.7 dB insertion loss while handling 1 W CW maximum. The compact 0.65" x 0.53" x 0.22" housing is outfitted with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.4 to 2 GHz
Frequency Min (GHz): 0.4
Frequency Max (GHz): 2
Insertion Loss (dB): 0.7 Max
Input/Output VSWR: 2.0:1 Max
Power Handling: 1 W CW Max
Peak Power: 3 W Peak Max (1 µs pulse width, 0.1% duty cycle)
Input Power: 1 W CW Max
3 W Peak Max (1 µs pulse width, 0.1% duty cycle)
Spike Leakage: 0.1 erg Max - Measured 0.004 erg
RF Leakage (dBm): 20 Max
Recovery Time: 250 ns Max
Connectors In/Out: SMA (F) removable
Size: 0.65" x 0.532" x 0.22"
16.5 mm x 13.5 mm x 5.5 mm
Finish: Painted Blue
Weight: 40 g [1.4 oz]
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -57 ºC to +95 ºC
Humidity: MIL-E-5400 3.2.24.4, 100% RH
Vibration: MIL-E-5400 3.2.24.5, Figure 2, Sheet 1 of 3, Curve III
Shock: MIL-E-5400 3.2.24.6.1, 11±1 ms, 6 direction
Altitude: 0 ~ 30, 000 FT
