LM-32G36G-14-20W-292FF Preliminary

Product Feature

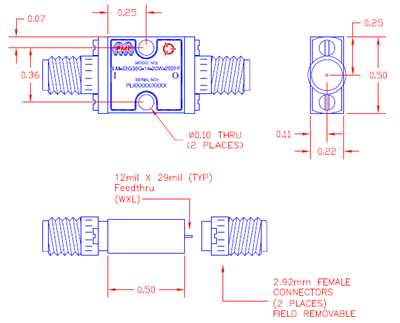

PMI Model No. LM-32G36G-14-20W-292FF is a 32.0 to 36.0 GHz, High Power Limiter that handles 20 Watts peak power and has a leakage power of +14 dBm typical. This unit is supplied with removable 2.92 mm female connectors in a housing measuring 0.50" x 0.50" x 0.22".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 32.0 to 36.0 GHz
Frequency Min (GHz): 32
Frequency Max (GHz): 36
Insertion Loss (dB): 2.0 max
Input/Output VSWR: 2.0:1
Peak Power: 20 Watts (43 dBm)
Input Power: 20 W (Peak)
RF Leakage (dBm): +14 Typ
Recovery Time: 250 ns max.
Pulse width: 30 us
Duty Cycle: 0.3
Connectors In/Out: 2.92 mm (F) Removable
Size: 0.50" x 0.50" x 0.22"
Weight: 1.5 oz. typ.
Environmental Ratings:
Operating Temperature: -40ºC to +60 ºC
Non-Operating Temperature: -50ºC to +70 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
