LM-32D5G33D5G-14-20W-292FF Preliminary

Limiter

LM-32D5G33D5G-14-20W-292FF
Product Feature

Quantic PMI Model LM-32D5G33D5G-14-20W-292FF is a high power limiter capable of withstanding an input power level of 20 Watts, 440 to 670nsec Pulse Width, PRF 600 to 900kHz, 40% Duty Cycle. This model operates in the 32.5GHz to 33.5GHz frequency range. The insertion loss is 4.0 dB maximum, VSWR of 2.0:1 and 250nsec response time packaged in a small 0.50 X 0.50 X 0.22 housing.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 32.5 to 33.5
Frequency Min (GHz): 32.5
Frequency Max (GHz): 33.5
Insertion Loss (dB): 4 dB Max
Input/Output VSWR: 2.0:1
Peak Power: 20 Watts (43 dBm)
Input Power: 20 W (Peak)
RF Leakage (dBm): +14 Typ
Recovery Time: 250 ns Max
Pulse width: 440 to 670 ns
PRF: 600 to 900 KHz
Duty Cycle: 0.4
Connectors In/Out: 2.92 mm (F) (Removable)

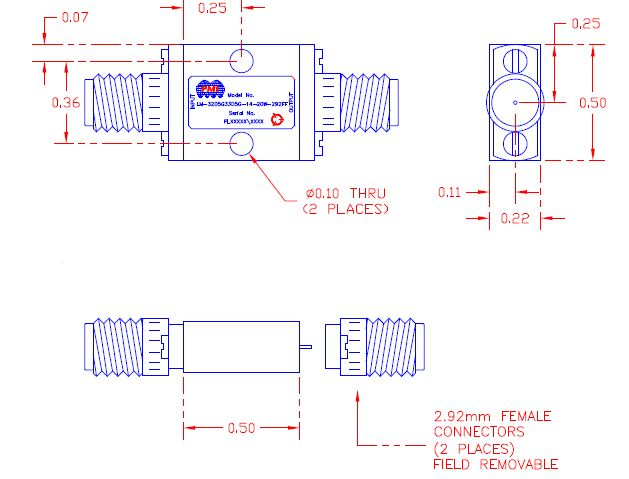

Size: 0.50" x 0.50" x 0.22"
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40ºC to +70 ºC
Non-Operating Temperature: -50ºC to +80 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
