LM-30M8G-0DB-33DBM-12V Preliminary

Limiter

LM-30M8G-0DB-33DBM-12V
Product Feature

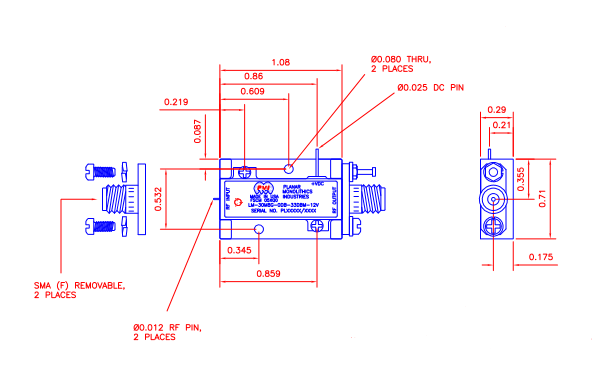

Quantic PMI Model LM-30M8G-0DB-33DBM-12V is an active limiter that operates over a frequency range of 0.03 to 8.0 GHz with a maximum input power of +33 dBm CW and a maximum leakage power of 0 dBm. The maximum VSWR is 2.0:1 and the operating voltage is +12 VDC with a typical current draw of 180 mA. The unit is supplied with removable SMA(F) connectors in our standard PE2 housing.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.03 to 8
Frequency Min (GHz): 0.03
Frequency Max (GHz): 8
Insertion Loss (dB): 2 dB
Input/Output VSWR: 2.0:1 Max
Maximum Input Power: +33 dBm CW
Input Power: +33 dBm CW Max
RF Leakage (dBm): 0 Max
DC Supply: +12 VDC @ 180 mA
Connectors In/Out: SMA (F)
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
