LM-30M3G-C3-1-PE2-HERM

Product Feature

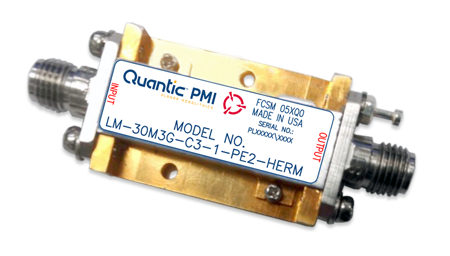

PMI Model Number LM-30M3G-C3-1-PE2-HERM is a high power limiter, supplied in our standard PE2 housing, that works from 30 MHz to 3 GHz. This limiter handles 5 Watts CW with a leakage power of +10 dBm typical.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.03 to 3.0 GHz
Frequency Min: 0.03 GHz
Frequency Max: 3.0 GHz
Insertion Loss: 1.2 dB
Input/Output VSWR: 1.5:1 Max
Peak Power: 5 Watts CW
Input Power: 5 W CW @ +25 °C (Peak)
Leakage Power: +10 dBm
Recovery Time: 1 µs
Connectors In/Out: SMA (In/Out)
Weight: 1.0 oz
Environmental Ratings:
Operating Temperature: -55 ºC to +125 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
