LM-30M2G-5CW-1KWP-SFF Active

RF Limiter

Product Feature

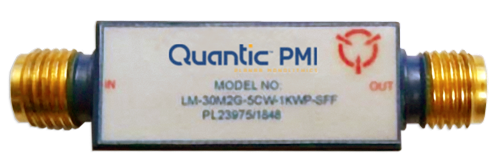

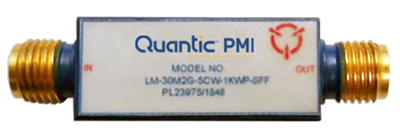

Quantic PMI Model LM-30M2G-5CW-1KWP-SFF is a RF Limiter that operates over the 0.03 to 2 GHz frequency range. This limiter can handle 5 W CW and 1 kW peak (0.1% duty cycle, 1 цs maximum pulse width) input power and provides a maximum leakage of +17 dBm (50 mW). This model has a low insertion loss of 0.7 dB and a recovery time of 1 цs maximum.  Package size is 0.90" x 0.38" sq with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.03 to 2
Frequency Min (GHz): 0.03
Frequency Max (GHz): 2
Insertion Loss (dB): 1.0 Max @ 0 dBm Input
Input/Output VSWR: 2.0:1 Max @ 0 dBm Input
Input Power: 5 W CW Min
1 kW Peak (0.1% Duty Cycle, 1 µs Max Pulse Width)
Spike Leakage: 1.0 x 10-8 kg m^2/sec^2 Max (0.1 ergs Max)
RF Leakage (dBm): 17 dBm Max
Recovery Time (3 dB): 1 µs Max @ 1 KW Peak Power
P1dB Limiting Threshold (dBm): 7 Min, 1 dB Compression
Impedance: 50 Ohm
Connectors In/Out: SMA (F)
Size: 0.90" x 0.38" sq
Finish: Painted Blue
Weight: 20 g Max
Environmental Ratings:
Operating Temperature: -30 °C to +85 °C
Non-Operating Temperature: -65 °C to +95 °C
Stabilization Bake: MIL-STD-883, Method 1008, Cond. B
Humidity: 95% RH @ +60 °C
Thermal Cycle: MIL-STD-883, Method 1010, Cond. B
Vibration: Displacement (Double Amplitude): 10 mm p-p 2-7 Hz
Acceleration Level (Peak): 7~50 Hz, 9.807 m/s^2 (1G)
Shock: 147.105 m/s^2 (15G)
11 ± 1 ms (6 Directions)
