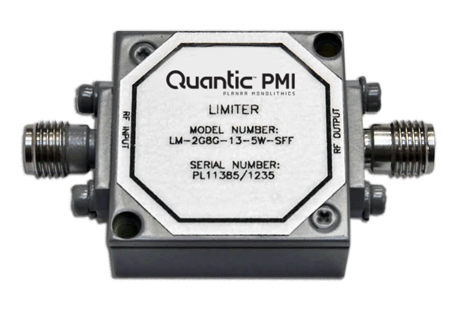

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 2.0 to 8.0 GHz |
|---|
| Frequency Min: | 2 GHz |
|---|
| Frequency Max: | 8 GHz |
|---|
| Insertion Loss: | 1 dB Typ |
|---|
| Insertion Loss (Measured): | 1 dB Typ - Measured 0.96 dB |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| VSWR (Measured): | 2.0:1 Max - Measured 1.53:1 |
|---|
| Input Power: | 5 Watts CW Max |
|---|
| Leakage Level: | +13 dBm Max -Measured 2 GHz – 12.3 dBm, 5 GHz - 9.4 dBm, 8 GHz - 8.1 dB |
|---|
| Recovery Time: | 40 ns Max - Measured <20 ns |
|---|
| Connectors In/Out: | SMA (F) |
|---|
| Size: | 1.0" x 1.0" x 0.4" |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
