LM-2G6G-3W-SMF Preliminary

Coaxial Limiter

Product Feature

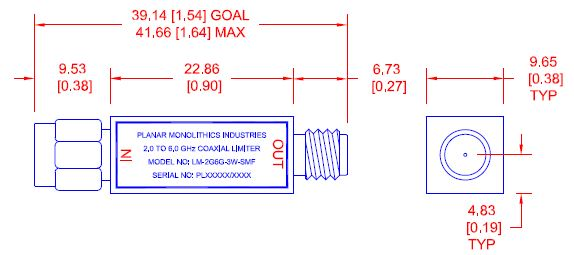

Quantic PMI Model LM-2G6G-3W-SMF is a coaxial limiter with an operating range of 2 to 6 GHz. This model has a maximum insertion loss of 1.2 dB with a VSWR of 2:1 maximum. This compact unit measures 0.90" x 0.38" square and is outfitted with SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 2 to 6 GHz
Frequency Min (GHz): 2
Frequency Max (GHz): 6
Insertion Loss (dB): 1.2 Max, 1.0 goal
Input/Output VSWR: 2:1 Max
Input Power: 3 W
RF Leakage (dBm): +18 Typ, +20 Max
Connectors In/Out: Input: SMA Male
Output: SMA Female
Size: 0.90" x 0.38" sq
Pin Max: 500 W Peak
1 µs Pulse Width
Average Power 3 W
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
Humidity: 100%
Vibration: 0.1 Inchpp or ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: 15G, 11 ± 1 ms
Altitude: 70, 000 ft
