LM-2G18G-2D8-33DBM-12V Active

Biased Limiter

Product Feature

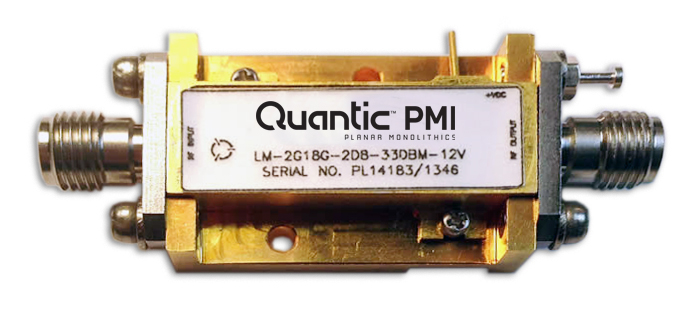

Quantic PMI Model LM-2G18G-2D8-33DBM-12V is a biased limiter that operates over a frequency range of 2.0 to 18.0 GHz with max input power of +33 dBm CW and a maximum leakage power of +2.8 dBm. The VSWR is 2.0:1 and the operating voltage is +12 VDC with a current draw of 180 mA. The unit is supplied with removable SMA (F) connectors in our standard PE2 housing.

Product Specifications

General Parameters:
Status: Active
Frequency: 2.0 to 18.0 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Insertion Loss: 2.0 dB Max
Insertion Loss (Measured): 2.0 dB Max - Measured 0.11 dB GAIN
Input/Output VSWR: 2.0:1 Max
Maximum Input Power: +33 dBm CW
Input Power: +33 dBm CW Max
Output Leakage Power: +2.8 dBm Max - Measured 1.46 dB Max
DC Supply: +12 VDC @ 180 mA Max - Measured 135 mA
Connectors In/Out: SMA (F)
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
