LM-26G40G-14-20W-292MM Active

High-power Limiter

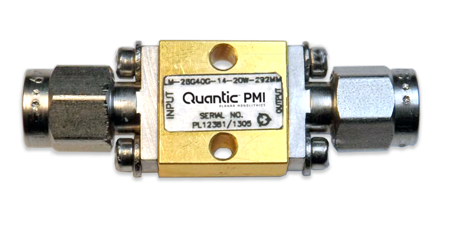

Quantic PMI Model No. LM-26G40G-14-20W-292MM is a high-power limiter capable of withstanding an input power level of 20 Watts, 440 to 670 ns Pulse Width, PRF 600 to 900 kHz, 40% Duty Cycle. This model operates in the 26.5 to 40 GHz frequency range. The insertion loss is 4.0 dB maximum, VSWR of 2.0:1 and 250 ns response time and a typical leakage of +14 dBm. This limiter is packaged in a small 0.50" X 0.50" X 0.22" housing and is supplied with 2.92mm male connectors.

Product Specifications

General Parameters:
Status: Active
Frequency: 26.5 to 40 GHz
Frequency Min: 26.5 GHz
Frequency Max: 40 GHz
Insertion Loss: 4.0 dB Max
Insertion Loss (Measured): 4.0 dB Max - Measured 2.45 dB
Input/Output VSWR: 2.0:1
VSWR (Measured): 2.0:1 - Measured 1.43:1 In- 1.54:1 Out
Peak Power: 20 Watts, 440 to 670 ns Pulse Width,
PRF 600 to 900 kHz, 40% Duty Cycle
Input Power: 20 W (Peak)
Leakage Power: +14 dBm Typ
Recovery Time: 250 ns Max
Connectors In/Out: 2.92mm (M) Removable
Size: 0.5" X 0.5" X 0.22"
Weight: 1.5 oz Typ
Environmental Ratings:
Operating Temperature: -40 ºC to +60 ºC
Non-Operating Temperature: -50 ºC to +70 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
