| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.01 to 20 |
|---|
| Frequency Min (GHz): | 0.01 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Insertion Loss (dB): | 2 dB Max @ Pin = -10 dBm |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| Peak Power: | 20 Watts, 1 µs pulse width & 0.1% duty cycle |
|---|
| Average Power: | 1 Watt CW |
|---|
| Input Power: | 20 Watts, 1 µs pulse width & 0.1% duty cycle
1 Watt CW average power |
|---|
| Leakage Power: | +14 dBm Max @ 1 Watt CW |
|---|
| RF Leakage (dBm): | +14 Max @ 1 Watt CW |
|---|
| Recovery Time: | 100 ns Max @ Pin = 27 dBm |
|---|
| Low Limiting Threshold: | +6 dBm Typ |
|---|
| P1dB Limiting Threshold (dBm): | +6 Typ |
|---|
| Connectors In/Out: | SMA Male |
|---|

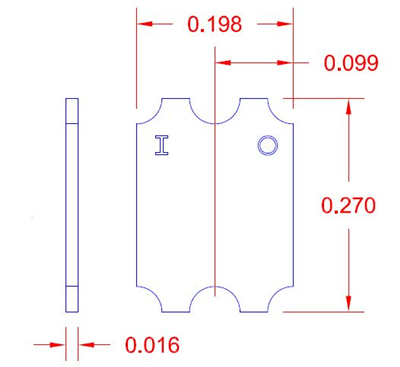

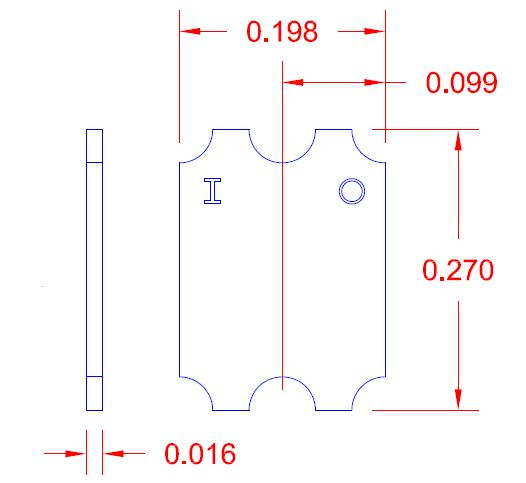

| Size: | [L] 0.270" x [W] 0.198" x [H] 0.016" WITHOUT CARRIER
[L] 1.200" x [W] 0.698" x [H] 0.200" INSIDE TEST FIXTURE |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C TO +125 °C |
|---|
| Non-Operating Temperature: | -65 °C TO +125 °C |
|---|
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
|---|
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
|---|
| Shock: | MIL-STD-202, METHOD 213B COND. B |
|---|
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
|---|
