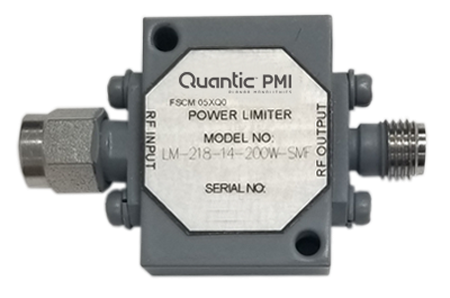

General Parameters: |
Status: | Active |
Frequency: | 0.01 to 18.0 GHz |
Frequency Min: | 0.01 GHz |
Frequency Max: | 18 GHz |
Insertion Loss: | 2.0 dB max. |
Insertion Loss (Measured): | 2.0 dB max. @ Pin = -10 dBm -Measured PL18010: 1.9 dB, PL18011: 2.0 dB |
Input/Output VSWR: | 2.0:1 max |
VSWR (Measured): | 2.0:1 max - Measured PL18010: 1.6:1- PL18011: 1.9:1 |
Peak Power: | 200 Watts, 1 µs & 0.1% Duty Cycle |
Average Power: | 1 Watt CW |
Input Power: | 1 Watt CW |
Leakage Level: | +14 dBm Max @ 1 Watt CW - Measured +10 dBm |
Recovery Time: | 100 ns Max @ Pin = 27 dBm - Measured 85 nsec |
Low Limiting Threshold: | +6 dBm Typ - Measured PL18010: +6 dBm, PL18011: +5 dBm |
Connectors In/Out: | SMA (M/F) |
Size: | 0.75" x 1.00" x 0.30" |
Finish: | Painted Gray |
Weight: | 1.5 oz. Typ |
Environmental Ratings: |
Operating Temperature: | -55ºC to +125 ºC |
Non-Operating Temperature: | -65 ºC to +125 ºC |
Humidity: | MIL-STD-202F, Method 103B Cond. B |
Vibration: | MIL-STD-202F, Method 204D Cond. B |
Shock: | MIL-STD-202F, Method 213B Cond. C |
Thermal Shock: | MIL-STD-202F, Method 107D Cond. A |
Fungus: | MIL-STD-810F, Method 508.5 |
Salt Spray: | MIL-STD-202F, Method 101D+EST Cond. B |
