LM-218-14-200W-SMF-HERM Active

High Power Limiter

Buy Now
Product Feature

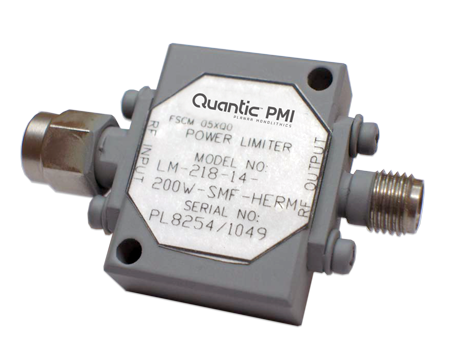

Quantic PMI Model LM-218-14-200W-SMF-HERM is a high power limiter that operates from 2 to 18 GHz and handles 200 Watts Peak Power with pulse widths of 1 µs, 0.1% duty cycle or 2W CW. This model offers low loss of 2 dB maximum, fast recovery of <100 ns and is hermetically sealed. Package size is 0.75" x 1.00" x 0.30" with SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18 GHz
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Insertion Loss (dB): 2.0 Max
Input/Output VSWR: 2.0:1 Max
Peak Power: 200 W Max, 1 µs, 0.1% Duty Cycle -
Measured 200 W, 1 µs, 0.1% Duty Cycle
Average Power: 2 W CW Max
RF Leakage (dBm): +15 Max @ 2 W CW Input
Recovery Time: 100 ns Max @ Pin = 27 dBm
P1dB Limiting Threshold (dBm): +6 Typ
Connectors In/Out: SMA Male / SMA Female
Size: 0.75" x 1.00" x 0.300" (H)
Finish: Painted Gray
Weight: 1.5 oz Typ
Environmental Ratings:
Operating Temperature: -55 ºC to +125 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-810F, Method 508.5
Salt Spray: MIL-STD-202F, Method 101D+EST Cond. B
