LM-218-14-200W-SFF-OPT10M20G-SMT Preliminary

Product Feature

PMI Model No. LM-218-14-200W-SFF-OPT10M20G-SMT is a 10 MHz to 20.0 GHz, High Power Limter. This model handles 200 W peak power with a pulse width of 1 us and 0.1% duty cycle or 1 watt CW. This limiter is supplied mounted in a test fixture.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.01 to 20.0 GHz
Frequency Min (GHz): 0.01
Frequency Max (GHz): 20
Insertion Loss (dB): 2.0 dB max.
Input/Output VSWR: 2.0:1 max
Peak Power: 200 Watts, 1 us pulse width & 0.1% duty cycle
Average Power: 1 Watt CW
Input Power: 1 W CW
RF Leakage (dBm): +14 Max @ 1 W CW
Recovery Time: 100 ns max. @ Pin = 27 dBm
P1dB Limiting Threshold (dBm): +6 Typ
Connectors In/Out: SMA (F/F)

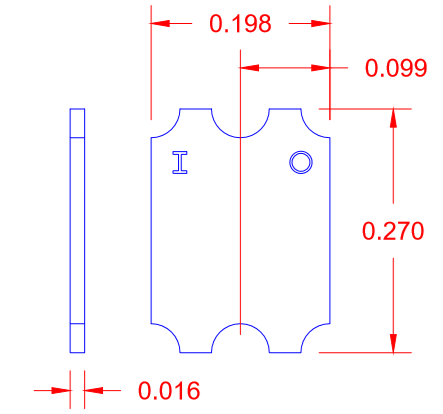

Size: 0.270" x 0.198" x 0.016" (without carrier), 1.200" x 0.698" x 0.200" (inside test fixture)
Environmental Ratings:
Operating Temperature: -55ºC to +125 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. C
Fungus: MIL-STD-202, Method 105C Cond. B
