LM-20M80M-10-20W Active

High Power Limiter

Buy Now
LM-20M80M-10-20W
Product Feature

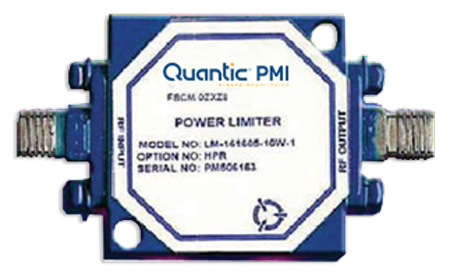

Quantic PMI Model LM-20M80M-10-20W is a high power limiter with an input power level of 20 Watts, insertion loss of 1.5 dB Maximum (0.5 dB Typical), VSWR of 1.5:1 Typical and 1 µs recovery time packaged in a small 1.00" x 1.00" x 0.40" housing with SMA (F) connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.025 to 0.08
Frequency Min (GHz): 0.025
Frequency Max (GHz): 0.08
Insertion Loss (dB): 1.5 dB Max, 0.5 Typ
Input/Output VSWR: 2.0:1 Max
Input Power: CW In-Band 5 to 10 W,
CW Out of Band 20 W Max
Recovery Time: 1 µs Max
Pulse width: 2 µs, 9 KHz Rep Rate
P1dB Limiting Threshold (dBm): +15 Max, +10 Typ
Connectors In/Out: SMA (F)
Size: 1.0" 1.0" x 0.4"
Weight: 1.0 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
