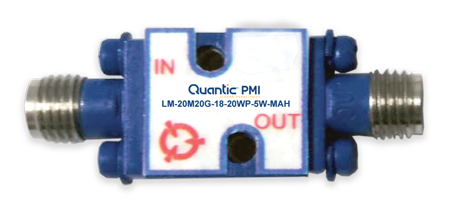

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.02 to 20 |
|---|
| Frequency Min (GHz): | 0.02 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Insertion Loss (dB): | 2.5 dB Max |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| Input Power: | 20 W Pulsed, 100 µs Pulse Width,
10% Duty Cycle, 5 W CW |
|---|
| RF Leakage (dBm): | <18 for 20 W Peak Power, 100 µs PW, 10% Duty Cycle
<16 for 5 W CW |
|---|
| Recovery Time: | <25 ns |
|---|
| Connectors In/Out: | SMA (F) Field Removable |
|---|
| Size: | 0.50" x 0.50" x 0.22" |
|---|
| Finish: | Painted Blue |
|---|
| Max Peak Power & CW Power: | 20 W Pulsed, 100 µs Pulse Width,
10% Duty Cycle, 5 W CW |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 °C to +150 °C |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
