| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.02 to 1 |
|---|
| Frequency Min (GHz): | 0.02 |
|---|
| Frequency Max (GHz): | 1 |
|---|
| Insertion Loss (dB): | 2 dB Max @ -10 dBm Input Power |
|---|
| Input/Output VSWR: | 1.5:1 Max |
|---|
| Input Power: | 20W CW Max @ -55 TO +85°C
1 KW PEAK Max@ (1 µs PULSE WIDTH, 1% DUTY CYCLE)
100W PEAK (10 µs PULSE WIDTH, 10% DUTY CYCLE ) |
|---|
| Leakage Power: | +17 dBm Max |
|---|
| RF Leakage (dBm): | +17 Max |
|---|
| Recovery Time (3 dB): | 250 ns Max @ 1000 W PEAK POWER |
|---|
| Limiting Threshold (dBm): | +5 dBm MIN (1 dB COMPRESSION) |
|---|
| P1dB Limiting Threshold (dBm): | +5 Min (1 dB Compression) |
|---|
| Impedance: | 50 OHMs |
|---|
| Connectors In/Out: | SMA |
|---|

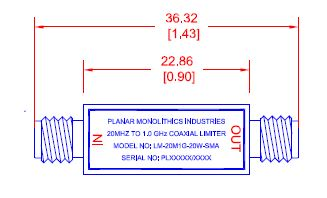

| Size: | (L) 22.86mm x (W) 9.65mm x (H) 9.65mm Max
[(L) 0.90" x (W) 0.38" x (H) 0.38" Max
EXCLUDING CONNECTORS |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 20g [0.705 oz] Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 °C TO +85 °C |
|---|
| Non-Operating Temperature: | -62 °C TO +95 °C |
|---|
| Humidity: | 100% |
|---|
| Vibration: | 0.1 inchpp OR ± 10G, 5 - 500 Hz |
|---|
| Shock: | 15G, 11±1 ms |
|---|
| Altitude: | 70, 000 FT |
|---|
