LM-20M18G-100W-15DBM-TH Preliminary

RF Limiter

LM-20M18G-100W-15DBM-TH
Product Feature

Quantic PMI Model LM-20M18G-100W-15DBM-TH is an RF Limiter that operates in the range of frequencies from 20 MHz to 18 GHz. This limiter can handle up to 100W CW more than 20 MHz to 18 GHz, for all temperatures (-55°C to +85°C) the energy input provides leaks of +15 dBm maximum. This model has a low insertion loss of 2.60 dB and a maximum 100 ns recovery time.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.02 to 18
Frequency Min (GHz): 0.02
Frequency Max (GHz): 18
Insertion Loss (dB): 2.6 dB Max @ -10 dBm Input Power
Input/Output VSWR: 2.0:1 Max @ -10 dBm Input Power
Input Power: 100 W CW Max @ -55 to +85 °C, 1 KW Peak Min +85°C
(1 µs Pulse Width, 0.1% Duty Cycle)
Leakage Power: +15 dBm Max @ 100 W CW
RF Leakage (dBm): +15 Max @ 100 W CW
Recovery Time: 100 ns Max @ 100 W Peak Power
P1dB Limiting Threshold (dBm): +5 dBm Min
Connectors In/Out: Input: SMA Male
Output: SMA Female

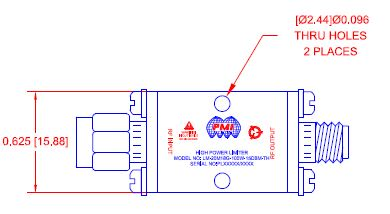

Size: 15.88 mm x 20.32 mm x 10.16 mm
0.625" x 0.80" x 0.40"
Excluding Connectors
Finish: Painted Blue
Weight: 20 g Max
RF Power Handling: 100 W CW Max @ -55 to +85 °C, 1 KW Peak Min +85°C
(1 µs Pulse Width, 0.1% Duty Cycle)
100 W (1 µs Pulse Width, 1% Duty Cycle, 10 kHz)
100 W (10 µs Pulse Width, 0.1% Duty Cycle, 100 Hz)
100 W (1 µs Pulse Width, 1% Duty Cycle, 1 kHz)
100 W (40 µs Pulse Width, 1% Duty Cycle, 2.5 kHz)
Insertion Loss @ -10 dBm Input Power: 2.60 dB Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
Humidity: 100%
Vibration: 0.1 inchpp or ± 10G, 5 ~ 500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: 15G, 11±1 ms
Altitude: 70, 000 FT
