LM-20M18G-100W-15DBM-SMT Preliminary

Surface Mount RF Limiter

Product Feature

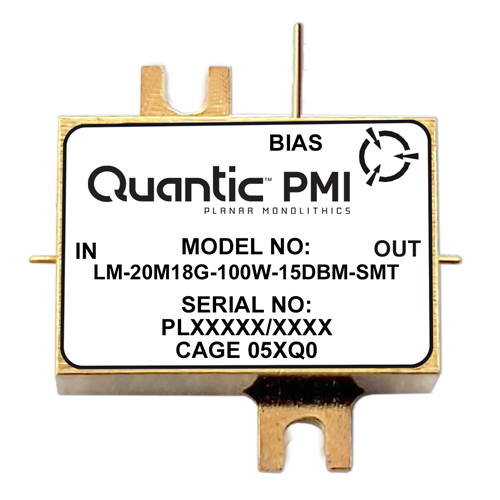

Quantic PMI Model No. LM-20M18G-100W-15DBM-SMT is an RF Limiter that operates in the frequency range of 20 MHz to 18.0 GHz. This limiter can handle up to 100 Watts CW over the -55 °C to +85 °C temperature range. This model has a low insertion loss of 2.6 dB, maximum recovery time of 100 ns, and is supplied in a convenient surface mount package.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.02 to 18 GHz
Frequency Min (GHz): 0.02
Frequency Max (GHz): 18
Insertion Loss (dB): 2.60 dB Max @ -10 dBm Input Power
Input/Output VSWR: 2.0:1 Max @ -10 dBm Input Power
Input Power: 100 W CW Max @ -55 °C to +85 °C
1 kW Peak Max @ +85 °C (1 µs Pulse Width, 0.1% Duty Cycle)
100 W (1 µs, 1% Duty Cycle, 10 KHz)
100 W (10 µs, 0.1% Duty Cycle, 100 Hz)
100 W (1 µs, 0.1% Duty Cycle, 1 KHz)
100 W (40 µs, 10% Duty Cycle, 2.5 KHz)
RF Leakage (dBm): +15 Max @ 100 W CW
Recovery Time: 100 ns Max @ 100 W Peak Power
P1dB Limiting Threshold (dBm): +5 Min
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
