LM-20M15G-100W-15DBM-NMF Preliminary

Limiter

LM-20M15G-100W-15DBM-NMF
Product Feature

Quantic PMI Model LM-20M15G-100W-15DBM-NMF is an RF limiter that operates in the range of frequencies 20 MHz to 15.0 GHz. This limiter can handle up to 100W CW more than 20.0 MHz to 15.0 GHz, for all temperatures (-55°C to +85°C) the energy input provides leaks of +15 dBm Max This model has a low insertion loss of 1.80 dB and a typical 100 ns recovery time.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.02 to 15
Frequency Min (GHz): 0.02
Frequency Max (GHz): 15
Insertion Loss (dB): 2 dB Max @ -10 dBm
Input/Output VSWR: 2.0:1 Max @ -10 dBm Input Power
Input Power: 100W CW Max @ -55°C to +85°C
1 KW PEAK Max +85°C (1us Pulse Width. 0.1 % Duty Cycle)
100W ( 1us, 1 % DUTY CYCLE, 10 KHz)
100W ( 10us, 0.1% DUTY CYCLE, 100 Hz)
100W ( 1us, 0. 1 % DUTY CYCLE, 1 KHz)
100W ( 40us, 10% DUTY CYCLE, 2.5 KHz)
RF Leakage (dBm): +15 Max @ 100 W CW
Recovery Time: 100 ns Max @ 1000 W PEAK POWER
P1dB Limiting Threshold (dBm): +5 Min
Connectors In/Out: Input: N-TYPE Male, Output: N-TYPE Female

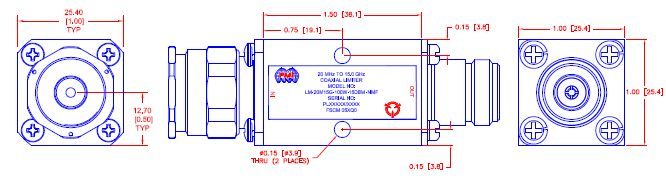

Size: 1.50" x 1.00" x 1.00"
Finish: Painted Blue
RF Power Handling: 100W CW Max @ -55°C to +85°C
1 KW PEAK Max +85°C (1us Pulse Width. 0.1 % Duty Cycle)
100W ( 1us, 1 % DUTY CYCLE, 10 KHz)
100W ( 10us, 0.1% DUTY CYCLE, 100 Hz)
100W ( 1us, 0. 1 % DUTY CYCLE, 1 KHz)
100W ( 40us, 10% DUTY CYCLE, 2.5 KHz)
VSWR @ -10 dBm Input Power: 2.0:1 Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 °C TO +85 °C
Non-Operating Temperature: -62°C TO +95°C
Humidity: 100%
Vibration: 0.1 inchpp OR ± 10G, 5 - 500 Hz (Figure 2, Sheet 1 of 3, Curve IV)
Shock: 15G, 11±1 ms
Altitude: 70, 000 FT
