LM-200M400M-200CW-NFF Preliminary

Ultra-High Power Limiter

LM-200M400M-200CW-NFF
Product Feature

Quantic PMI Model LM-200M400M-200CW-NFF is an ultra-high power limiter operating in the frequency range 200 MHz to 400 MHz, with 200W of CW power handling (+53 dBm), and peak power 2 KW typically (+63 dBm), 25 µs PW, 5% duty cycle.  Package size is 1.5" x 1.0" sq with Type-N female input connector & SMA female output connector.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.02 to 0.4
Frequency Min (GHz): 0.02
Frequency Max (GHz): 0.4
Insertion Loss (dB): 2 dB Max
Input/Output VSWR: 1.5:1 Max
Input Power: 200 W CW (+53 dBm) Typ
2kW Peak Power (+63 dBm) Typ
(25 µs PW, 5% Duty Cycle)
Flat Leakage Power: +20 dBm Typ
RF Leakage (dBm): +20 Typ
P1dB: +6 dBm Min
Recovery Time: 100 ns Max
P1dB Limiting Threshold (dBm): +6 Min
Connectors In/Out: Input: N-Type female
Output: SMA female

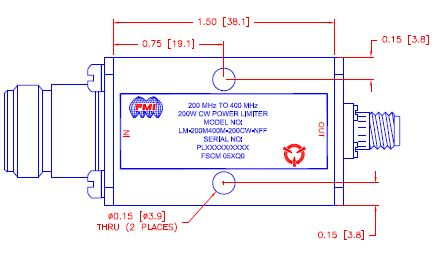

Size: 1.50" x 1.00" x 1.00"
Finish: BLUE PAINT
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 1070 COND. A
