LM-1R2G1R4G-20-100W-SM Preliminary

Product Feature

PMI Model No. LM-1R2G1R4G-20-100W-SM is a surface mount limiter that operates over the 1.2 to 1.4 GHz frequency range. This model offers a maximum insertion loss of 0.6 dB while handling input powers of up to 100 W peak.

Product Specifications

General Parameters:
Status: Preliminary
Frequency: 1.2 to 1.4 GHz
Frequency Min: 1.2 GHz
Frequency Max: 1.4 GHz
Insertion Loss: 0.6 dB
Insertion Loss (Measured): 0.6 dB max., 0.5 dB goal
Input/Output VSWR: 1.4:1 max
Peak Power: 100 W Peak
Input Power: 100 W Peak (1.2 ms Pulse Width, 20% Duty Cycle)
Spike Leakage: 29 dBm
Flat Leakage: 20 dBm
Recovery Time: 6 us goal

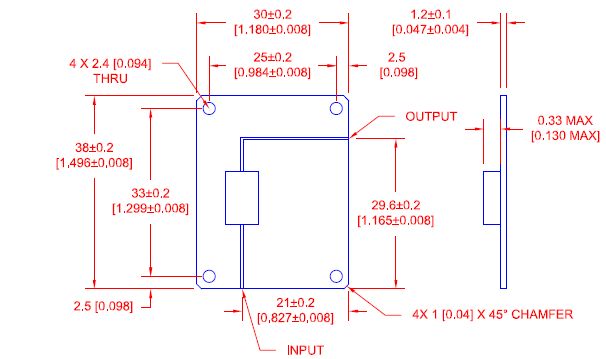

Size: 1.500" x 1.180" x 0.047"
Finish: Gold Plated
Weight: 1g typ
Environmental Ratings:
Operating Temperature: -40 ºC to +70 ºC
Non-Operating Temperature: -50ºC to +70 ºC
