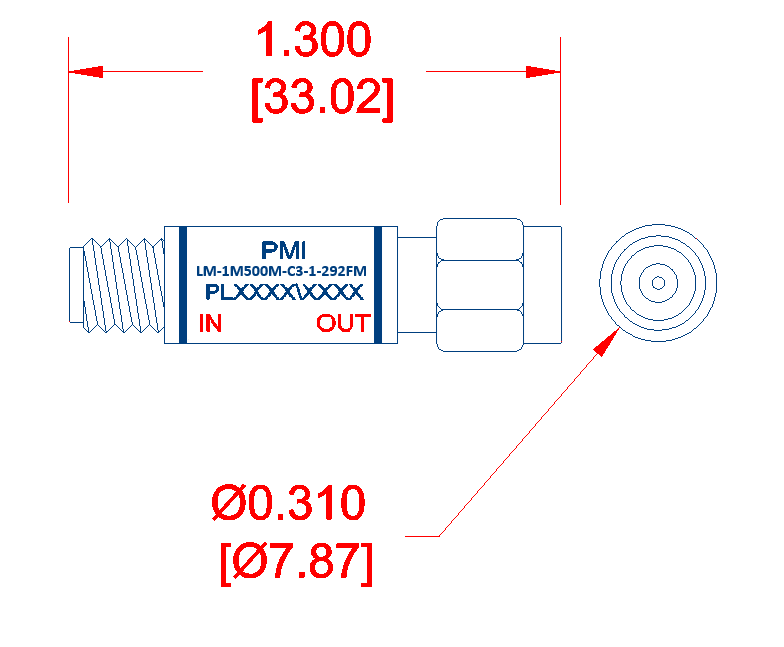

LM-1M500M-C3-1-292FM Preliminary

High Power Limiter

Product Feature

Model Number LM-1M500M-C3-1-292FM is a High Power Limiter that operates from 1 MHz to 500 MHz. This limiter handles 100 Watts having a 100 us pulse width and 1% duty cycle or 2 Watts CW.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.001 to 0.5 GHz
Frequency Min (GHz): 0.001
Frequency Max (GHz): 0.5
Insertion Loss (dB): 0.9 Max
Input/Output VSWR: 1.5:1 Max
Input Power: 100 W @ 1 us Pulse Width and 1% Duty Cycle
2 W CW
RF Leakage (dBm): +13.5 Max
Connectors In/Out: 2.92 mm Female / Male
Finish: Albaloy Plated
Weight: 1.0 oz. Typ
Environmental Ratings:
Operating Temperature: -55ºC to +125 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
