LM-1K2G-5CW-SFF-HERM-SM Preliminary

RF Limiter

Product Feature

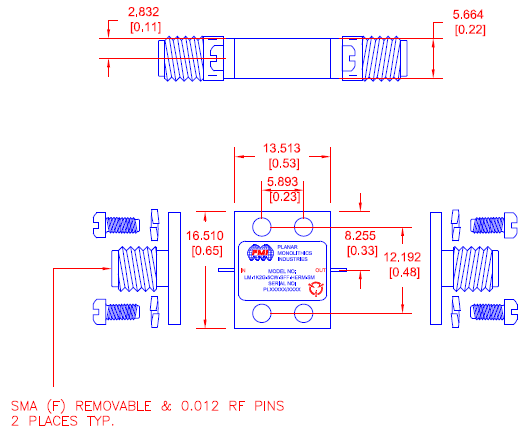

Quantic PMI Model LM-1K2G-5CW-SFF-HERM-SM is a 0.001 to 2 GHz, RF Limiter that is capable of handling 5W CW of input power and provides a maximum leakage of +20 dBm (100 mW) maximum. This model has a low insertion loss of 0.8 dB in a hermetically sealed package.  Package size is 0.53" x 0.65" x 0.22" with removable SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.001 to 2 GHz
Frequency Min (GHz): 0.001
Frequency Max (GHz): 2
Insertion Loss (dB): 0.8 Max
Input/Output VSWR: 1.3:1 Max
Input Power: 5 W CW Min
RF Leakage (dBm): 0.001 to 1.0 GHz: 17 Max
1.0 to 2.0 GHz: 20 Max
P1dB Limiting Threshold (dBm): 7 Min, 1 dB Compression
Impedance: 50 Ohm
Size: 0.53" x 0.65" x 0.22",
13.513 mm x 16.510 mm x 5.664 mm
(Excluding Connectors)
Finish: Gold Plated/ Hermetically Sealed
Internal Visual: MIL-STD-883, Method 2017
Burn In: MIL-STD-883, Method 1015, Cond. 125 ºC
Seal Fine & Gross: MIL-STD-883, Method 1014, Cond. A & C
Non-Destructive Bond Pull: MIL-STD-883, Method 2023
Environmental Ratings:
Constant Acceleration: MIL-STD-883, Method 2001, Cond. A (Y Axis)
External Visual: MIL-STD-883, Method 2009
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +95 ºC
Stabilization Bake: MIL-STD-883, Method 1008 Cond. B
Thermal Cycle: MIL-STD-883, Method 1010 Cond. B
