LM-1G2G-19-200W-SFF Active

High Power Limiter

Buy Now
Product Feature
Additional Documents

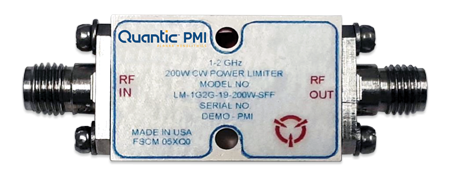

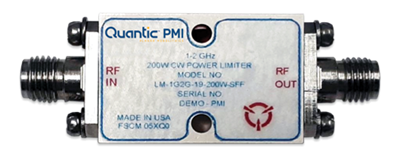

Quantic PMI Model LM-1G2G-19-200W-SFF is a high-power limiter operating in the frequency range of 1.0 to 2.0 GHz with 200 W of CW power handling (+53 dBm). This compact housing is fitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 2 GHz
Frequency Min (GHz): 1
Frequency Max (GHz): 2
Insertion Loss (dB): 1.3 Max
Input/Output VSWR: 2:1 max.
Power Handling: +53 dBm CW Max (200 W)
+55 dBm Peak 3 µs Pulse, 10% Duty Cycle (320 W)
Input Power: +53 dBm CW Max (200 W)
+55 dBm Peak 3 µs Pulse, 10% Duty Cycle (320 W)
RF Leakage (dBm): +20 Typ
Recovery Time: 1 µs Max
Connectors In/Out: SMA (F)
Size: 1.00" x 0.68" x 0.35"
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
