LM-1G18G-15-25W-SMF-OPT4G8G Preliminary

High Power Limiter

LM-1G18G-15-25W-SMF-OPT4G8G
Product Feature

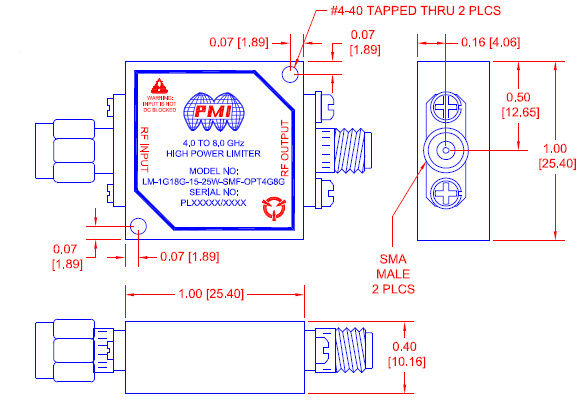

Quantic PMI Model LM-1G18G-15-25W-SMF-OPT4G8G is a high power limiter that operates over the 4 to 8 GHz frequency range. This model is capable of handling an input power of 10 Watts CW housed within a compact 1.00" x 1.00" x 0.40" package outfitted with field replaceable SMA connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 4 to 8
Frequency Min (GHz): 4
Frequency Max (GHz): 8
Insertion Loss (dB): 1.5
Input/Output VSWR: 2.0:1
Peak Power: 100 W
Input Power: 10 W CW
RF Leakage (dBm): +17 Typ
Recovery Time: 100 ns
Connectors In/Out: SMA (M/F)
Size: 1.0" x 1.0" x 0.4"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105B Cond. B
Temperature Cycle: MIL-STD-202, Method 107A Cond. A
