LM-1G18G-15-25W-SFF Active

High Power Limiter

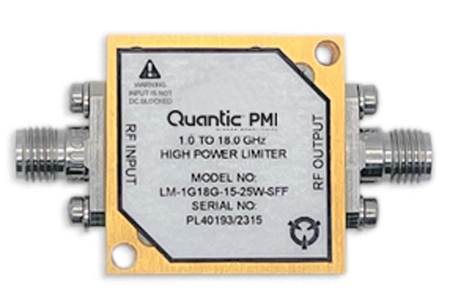

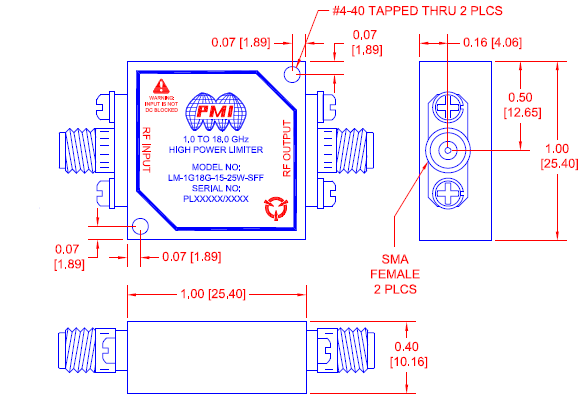

Quantic PMI Model LM-1G18G-15-25W-SFF is a high power limiter that operates over the 1 to 18 GHz frequency range. This model can handle an input power of 25 W CW housed within a compact 1.00" x 1.00" x 0.40" package outfitted with field replaceable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 18
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Insertion Loss (dB): 2.5 Max
Input/Output VSWR: 2.0:1 Max
Peak Power: 250 W Max @ 10% Duty Cycle, 40 µs Pulse Width
Input Power: 25 W CW Max - Measured 45 dBm (31.6 W)
RF Leakage (dBm): 15 dBm Typ
Recovery Time: 100 ns Typ
Finish: Gold Plated
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105B Cond. B
Temperature Cycle: MIL-STD-202, Method 107A Cond. A
