LM-1G18G-15-10W-500WP-SFF Active

High Power Limiter

Buy Now
Product Feature

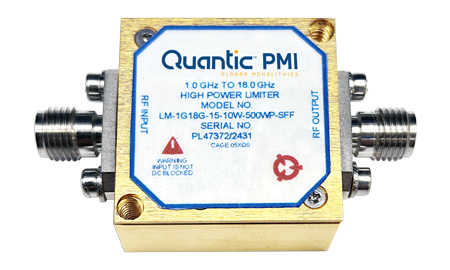

Quantic PMI Model LM-1G18G-15-10W-500WP-SFF is a high power limiter that operates over the 1 to 18 GHz frequency range that can handle an input power of 10 W CW and 500 W Max (@ 0.1% Duty Cycle, 1 µs Pulse Width) with an RF leakage of +17 dBm Typ, insertion loss of 2.5 dB and a VSWR of 2.0: 1.  Compact housing measuring 1.0" x 1.0" x 0.4" with field replaceable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 18 GHz
Frequency Min (GHz): 1
Frequency Max (GHz): 18
Insertion Loss (dB): 2.5 Max
Input/Output VSWR: 2.0:1 Max
Input Power: 10 W CW Max
RF Leakage (dBm): +17 Typ
Recovery Time: 100 ns Typ
Connectors In/Out: SMA (F)
Size: 1.0" x 1.0" x 0.4"
Finish: Gold Plated
Peak Input Power: 500 W Max (@ 0.1% Duty Cycle, 1 µs Pulse Width)
Insertion Loss @ -20 dBm Input Power: 2.0:1 Max
RF Input Power: 10 W CW Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 C
Non-Operating Temperature: -65 °C to +125 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107A Cond. A

View 3D Model
