LM-18G40G-18-1W-292FF * Active

Ultra-High Speed, Millimeter Wave, High Power RF Limiter

Buy Now
Product Feature

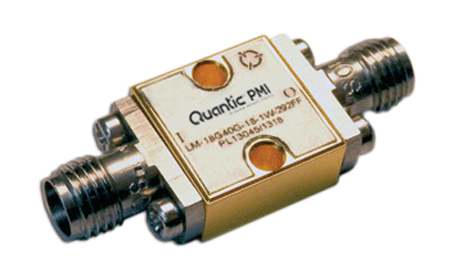

Quantic PMI Model LM-18G40G-18-1W-292FF is an Ultra-High Speed, Millimeter Wave, High Power RF Limiter that operates over the frequency range of 18 to 40 GHz. This limiter can handle input power levels up to 1 Watt CW and provides a leakage output power of +18 dBm maximum and +12 dBm typical. The limiting threshold is +5 dBm typical and +9 dBm maximum. The insertion loss is less than 4 dB having a typical loss of 3.5 dB at 40 GHz. This limiter offers ultra-high recovery speeds of 10 ns maximum. The ultra-small housing measures only 0.5” x 0.5” x 0.22” and features field removable 2.92mm female connectors. This package can be used in connectorized or drop-in form.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 18 to 40 GHz
Frequency Min (GHz): 18
Frequency Max (GHz): 40
Insertion Loss (dB): 4.0 Max
Input/Output VSWR: 2.1:1
Input Power: 1 Watt CW Max
RF Leakage (dBm): +18 Max
Recovery Time: 10 ns Max
P1dB Limiting Threshold (dBm): +9 Max
Connectors In/Out: 2.92mm (F) Removable
Size: 0.5" x 0.5" x 0.22"
Weight: 1.5 oz Typ
Environmental Ratings:
Operating Temperature: -54 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
