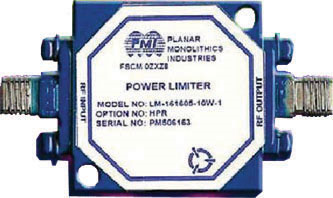

LM-17G18G-10-350W-SFF-VF Active

High-Power Limiter

LM-17G18G-10-350W-SFF-VF
Product Feature

Quantic PMI Model LM-17G18G-10-350W-SFF-VF is a high-power limiter capable of withstanding an input power level of 350 Watts, 20 µs pulse width, 6% duty cycle. This model incorporates an internal video filter that provides over 50 dB rejection at frequencies below 2 GHz. The insertion loss is 3.0 dB, VSWR of 1.8:1 and 3 µs response time packaged in a small 1.00" x 1.00" x 0.05" housing.

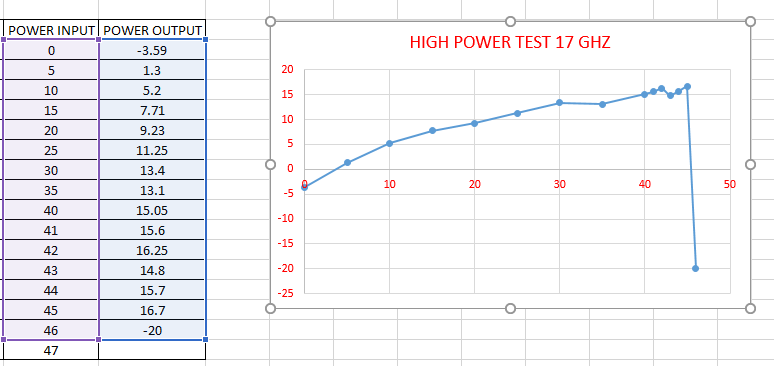

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 17 to 18
Frequency Min (GHz): 17
Frequency Max (GHz): 18
Insertion Loss (dB): 3.0 Typ
Input/Output VSWR: 1.8:1 Typ
Peak Power: 350 Watts, 20 µs pulse width, 6% duty cycle
Input Power: 350 Watts, 20 µs pulse width, 6% duty cycle (peak)
RF Leakage (dBm): +10 Typ
Response Time: 3 µs Max
Video Filter: -50 dB Rejection Min below 2 GHz
Size: 1.0" x 1.0" x 0.5"
Weight: 1.5 Oz Typ
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
