LM-161605-10W1-HPR Active

Limiter

Buy Now

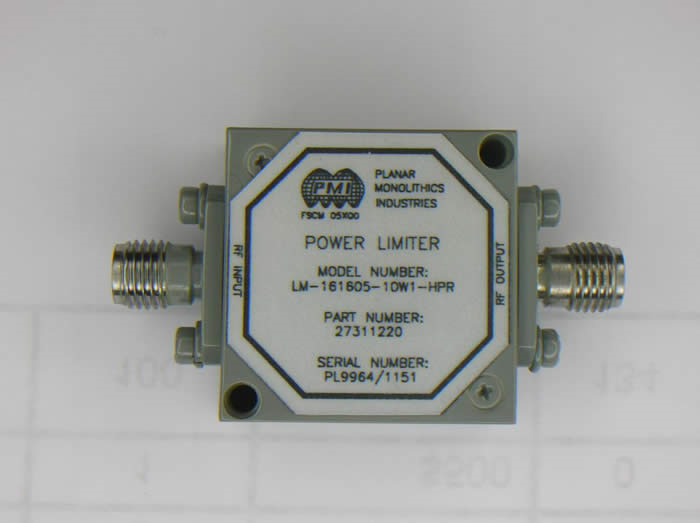

LM-161605-10W1-HPR
Product Feature

Quantic PMI Model LM-161605-10W1 Option HPR is a High Power Limiter that works from 16GHz to 16.5GHz, that handles 40 Watts Peak Power with a Pulse Width of 15uSec. (Can be used from 2-18GHz)

Additional Product Information under, http://www.planarmonolithics.com/products/LM-161605-10W1-HPR.htm

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 16 to 16.5
Frequency Min (GHz): 16
Frequency Max (GHz): 16.5
Insertion Loss (dB): 1.5 dB Max
Input/Output VSWR: 17 dB Typ
Input Power: 160 W Peak, 40 W Average
RF Leakage (dBm): 13 Max
Recovery Time: 1 us
Pulse width: 15 us
Duty Cycle: 0.25
P1dB Limiting Threshold (dBm): +5 Typ
Connectors In/Out: SMA Female (Input and Output)
Size: 1.00 X 1.00 X 0.40 (H)
Weight: 1.5 oz. Maximum
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
