LM-150M5G-200CW-2KWPK-AGAL Active

Ultra-High Power Limiter

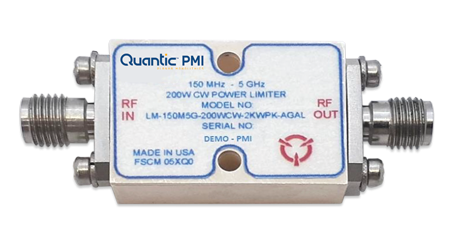

PMI Model: LM-150M5G-200CW-2KWPK-AGAL is a ultra-high power limiter operating in the frequency range 150 MHz to 5 GHz, with 200 W of CW power handling (+53 dBm), and peak power 2 KW Typ (+63 dBm), 25 µs PW, 5% duty cycle. This compact housing is fitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.15 to 5 GHz
Frequency Min: 0.15 GHz
Frequency Max: 5 GHz
Insertion Loss: 2.00 dB Max (0.15 to 0.3 GHz)
1.50 dB Max (0.3 to 5 GHz)
Input/Output VSWR: 1.70:1 Max
Input Power: 200 Watts CW (+53 dBm) Typ
2 kW Peak Power (+63 dBm) Typ
(25 µs PW, 5% Duty Cycle)
Flat Leakage: +20 dBm Typ
P1dB: +6 dBm Min
Recovery Time: 100 ns Max
Connectors In/Out: SMA Female
Size: 1.00" x 0.68" x 0.35"
Finish: Blue Paint
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -55 °C to +125 °C
Humidity: MIL-STD-202, METHOD 103B COND. B
Vibration: MIL-STD-202, METHOD 204D COND. B
Shock: MIL-STD-202, METHOD 213B COND. B
Altitude: MIL-STD-202, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202, METHOD 107D COND. A
