LM-12-20-5W-2 Active

RF Power Limiter

Buy Now
LM-12-20-5W-2
Product Feature

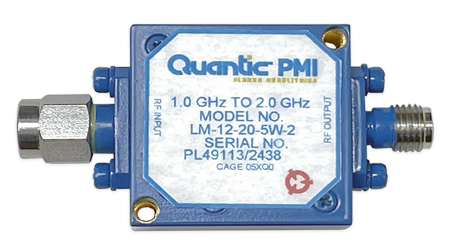

Quantic PMI Model LM-12-20-5W-2 is an RF power limiter with a frequency range of 1 to 2 GHz, average power of 5 W, leakage power of <100 mW, insertion loss of <1 dB and VSWR of 2.0:1. The size is 1.0" x 1.0" x 0.4" with SMA male/female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 1 to 2
Frequency Min (GHz): 1
Frequency Max (GHz): 2
Insertion Loss (dB): 1 dB Max
Input/Output VSWR: 2.0:1 Max
Peak Power: 400 W Max (1 µs PW, 0.1% DC)
Average Power: 5 W CW Max
RF Leakage (dBm): 15 dBm Max, 13 dBm Typ
Size: 1.0" x 1.0" x 0.4"
Finish: Painted Blue
Weight: 1.5 oz Typ
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: +10 ºC to +55 ºC
Non-Operating Temperature: -30 ºC to +50 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: 3.55 g
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
