LM-10M9G-100CW-1KWP-SFF Active

RF Limiter

Buy Now
Product Feature

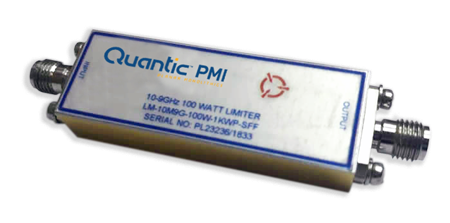

PMI Model No. LM-10M9G-100CW-1KWP-SFF is a RF Limiter that operates in the 10 MHz to 9 GHz frequency range. This limiter can handle 100 W CW over 10 MHz to 8.0 GHz, 80 W CW 9.0 GHz, and 50 W CW 10 MHz to 9.0 GHz for all temperatures (-55 °C to +85 °C) and 1 kW Peak (1% duty cycle, 1 µs maximum pulse width) input power and provides a maximum leakage of +20 dBm maximum.  This model has a low insertion loss of 2 dB and a recovery time of 100 ns typically.  Unit size is Size and 1.86" x 0.65" x 0.38" has removable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.01 to 9 GHz
Frequency Min (GHz): 0.01
Frequency Max (GHz): 9
Insertion Loss (dB): 2 Typ
Input/Output VSWR: 2.0:1 Max (At -10 dBm input)
Input Power: 100 W CW Max, 10 MHz to 8.0 GHz
80 W CW Max at 9.0 GHz
50 W CW Max 10 MHz to 9.0 GHz
All Temperatures: 1 kW Peak (1 µs PW Max, 1% Duty Cycle)
RF Leakage (dBm): 20 Max @ 100 W CW
Recovery Time: 100 ns Typ
P1dB Limiting Threshold (dBm): 0 Min
Impedance: 50 Ohms
Connectors In/Out: SMA female - field replaceable
Size: 1.86" x 0.65" x 0.38"
Finish: Gold Plated
Environmental Ratings:
Constant Acceleration: MIL-STD-883, Method 2001, A (Y1 Axis)
External Visual: MIL-STD-883, Method 2009
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -60 °C to +100 °C
Stabilization Bake: MIL-STD-883, Method 1008, Test Cond. B
Thermal Cycle: MIL-STD-883, Method 1010, Test Cond. B
