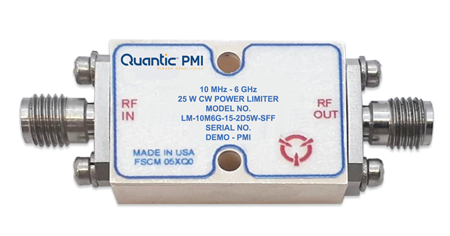

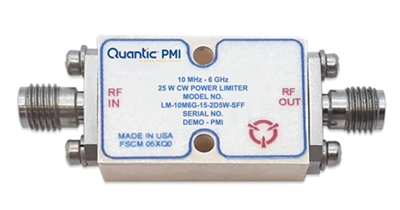

General Parameters: |
Status: | Active |
Frequency: | 0.01 to 6.0 GHz (Usable to 10.0 GHz) |
Frequency Min: | 0.01 GHz |
Frequency Max: | 6.0 GHz (Usable to 10.0 GHz) |
Insertion Loss: | 2 dB Max |
Input/Output VSWR: | 1.8:1 Max |
Power Handling: | 2.5 W (+34 dBm) CW Max Peak Power 3 W (+35 dBm), Pulse 1 µs 1% Duty Cycle |
Input Power: | 2.5 W (+34 dBm) CW Max Peak Power 3 W (+35 dBm), Pulse 1 µs 1% Duty Cycle |
Flat Leakage Power: | +23 dBm Typ |
Recovery Time: | 100 ns Max |
Connectors In/Out: | SMA (F) |
Size: | 1.00" x 0.68" x 0.35" |
Finish: | Painted Blue |
Environmental Ratings: |
Operating Temperature: | -40 °C to +85 °C |
Non-Operating Temperature: | -55 °C to +125 °C |
Humidity: | MIL-STD-202, Method 103B Cond. B |
Vibration: | MIL-STD-202, Method 204D Cond. B |
Shock: | MIL-STD-202, Method 213B Cond. B |
Altitude: | MIL-STD-202, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
